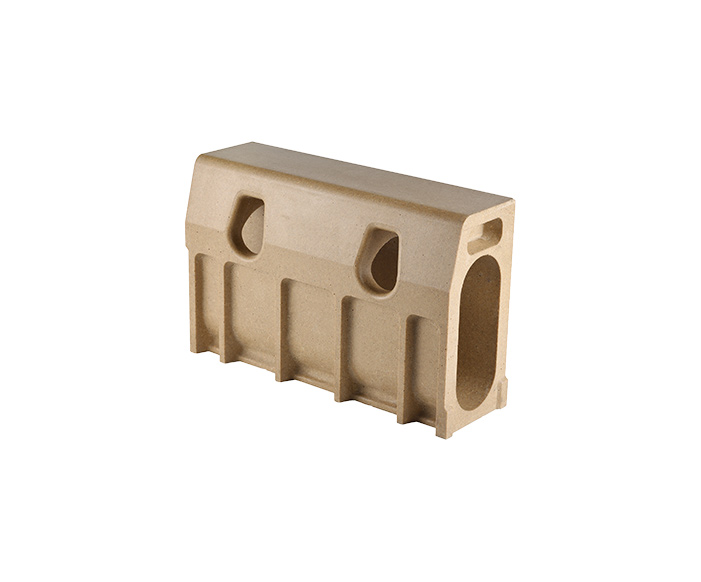

1.Are you designing a road with kerbs? So, the best solution is the simplest one. MEAKERB channel series will be your best choice, for it intelligently combines drainage with kerbs.
The product is suitable for all linear drainage places in city, rural and urban roads such as expressway, landscape road, railway station, curved traffic pavement, etc.
Bearing grade
1.One product, two functions, effectively combining pavement drainage and kerbs
2.Polymer concrete integrated material

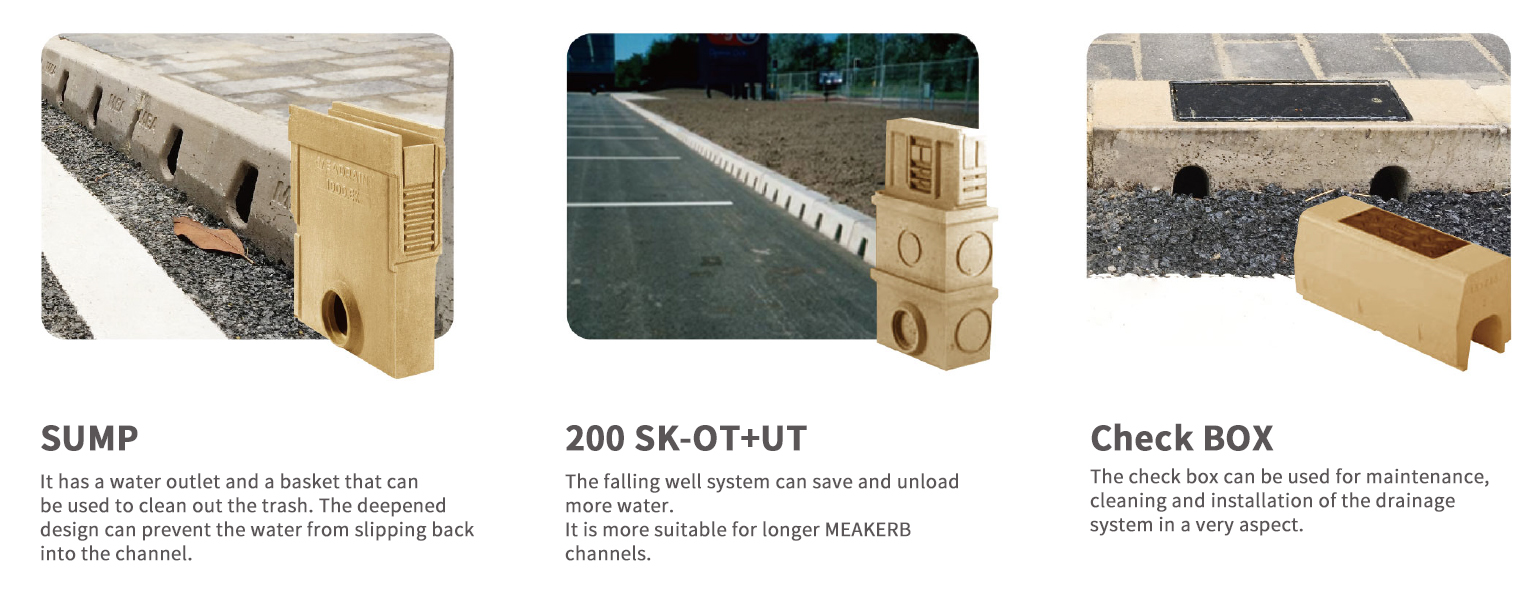

3.Equipped with cleaning manhole and garbage inspection boxes, more convenient for cleaning and maintenance
4.Replacement of the traditional road gully, save part of the pipeline construction cost
| Model | Inner width（mm） | Outer width（mm） | Height（mm） | Length（mm） | Rainwater collection area (cm²/m) |
| MEAKERB 1000.0 | 100 | 130 | 295 | 1000 | 200 |
| MEAKERB 1005.0 | 100 | 130 | 320 | 1000 | 200 |
| MEAKERB 1010.0 | 100 | 130 | 345 | 1000 | 200 |
| MEAKERB 1020.0 | 100 | 130 | 395 | 1000 | 200 |
| MEAKERB 1030.0 | 100 | 130 | 445 | 1000 | 200 |
| MEAKERB 1040.0 | 110 | 150 | 500 | 1000 | 200 |
| MEAKERB 2000.0 -150TH/440 | 200 | 240 | 440 | 1000 | 312 |
| MEAKERB 2000.0-150TH | 200 | 240 | 460 | 1000 | 312 |
| MEAKERB 2010.0-150TH | 200 | 240 | 510 | 1000 | 312 |
| MEAKERB 2020.0-150TH | 200 | 240 | 560 | 1000 | 312 |
