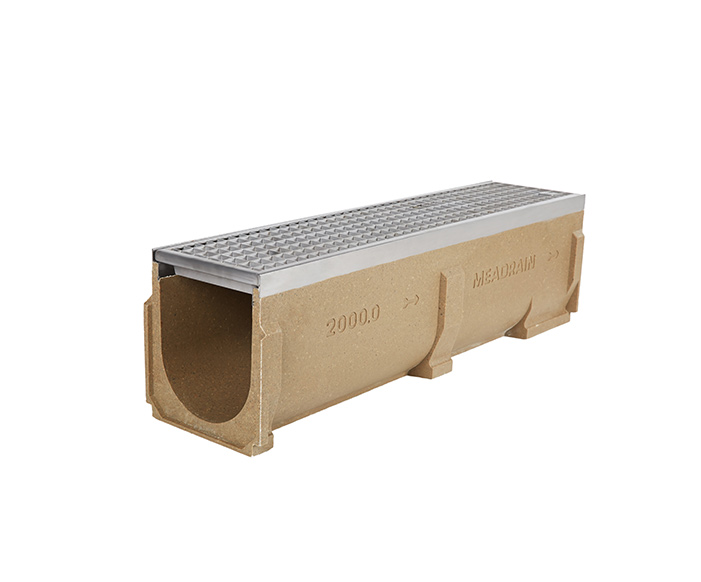

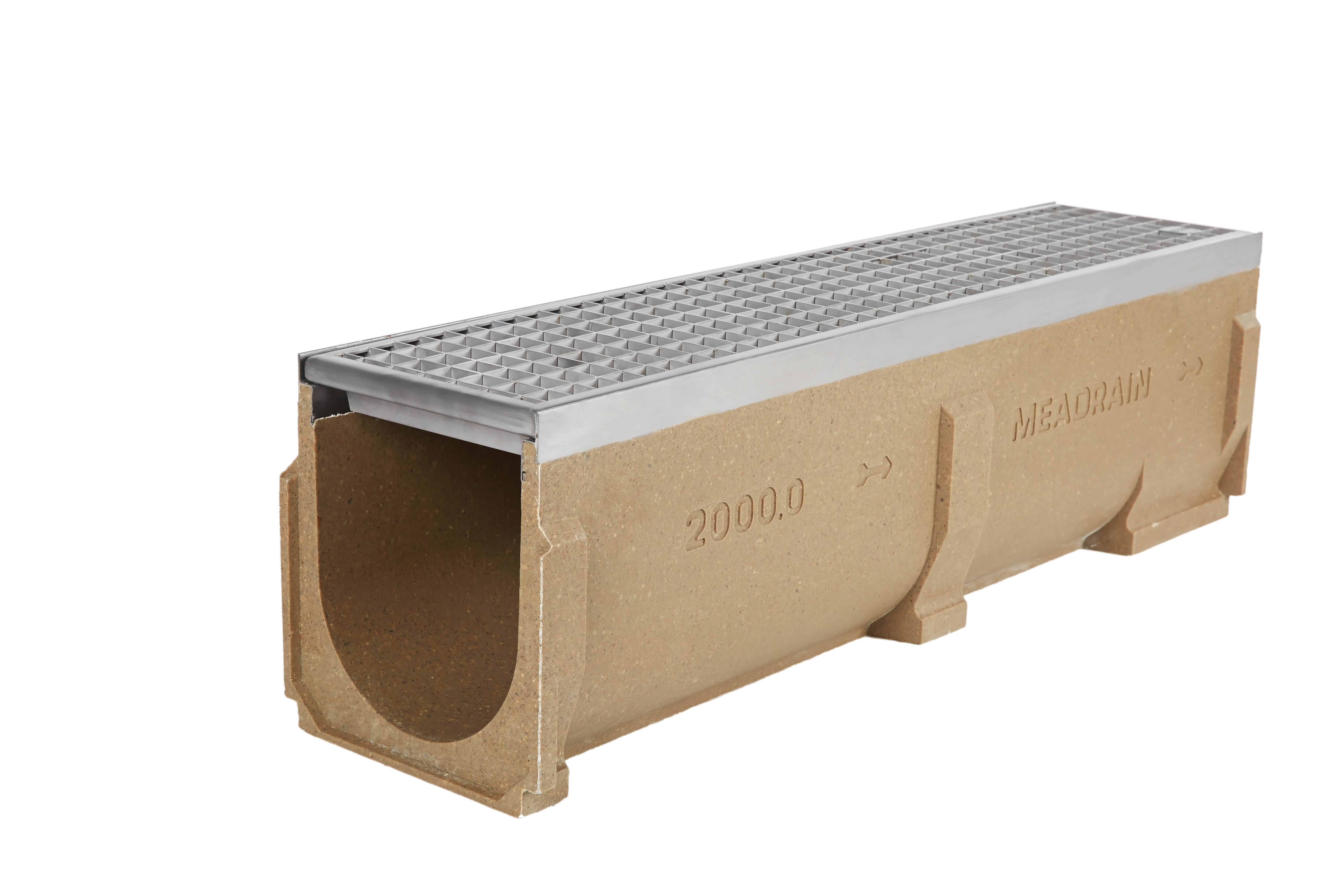

In cities, MEA®Drain City series metal cover polymer concrete drainage system will be your ideal choice. It not only provides you with rapid drainage effect, but also provides products that meet the requirements of urban pavement bearing capacity and diversified design of metal cover, which can meet the different needs of civil and industrial users.

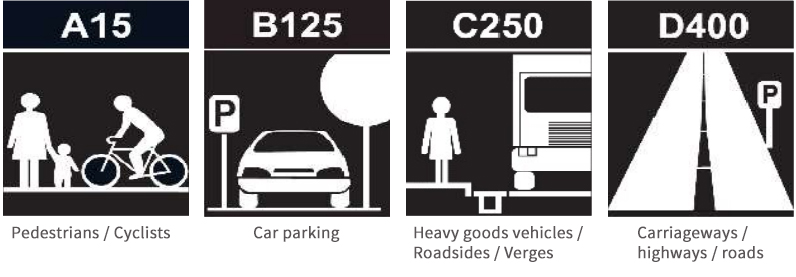

Bearing grade
1.The drainage channel is made of polymer concrete with high strength, aging resistance, frost resistance and chemical corrosion resistance
2.The surface is smooth without pores and water seepage.
3.The metal grating is available in two locking ways, which is easy and fast to install
4.The outlet is arranged flexibly, which can be conveniently and safely connected with the municipal rainwater pipelines.
5.The cover is made of stainless steel and galvanized material, which can meet the different needs of customers.

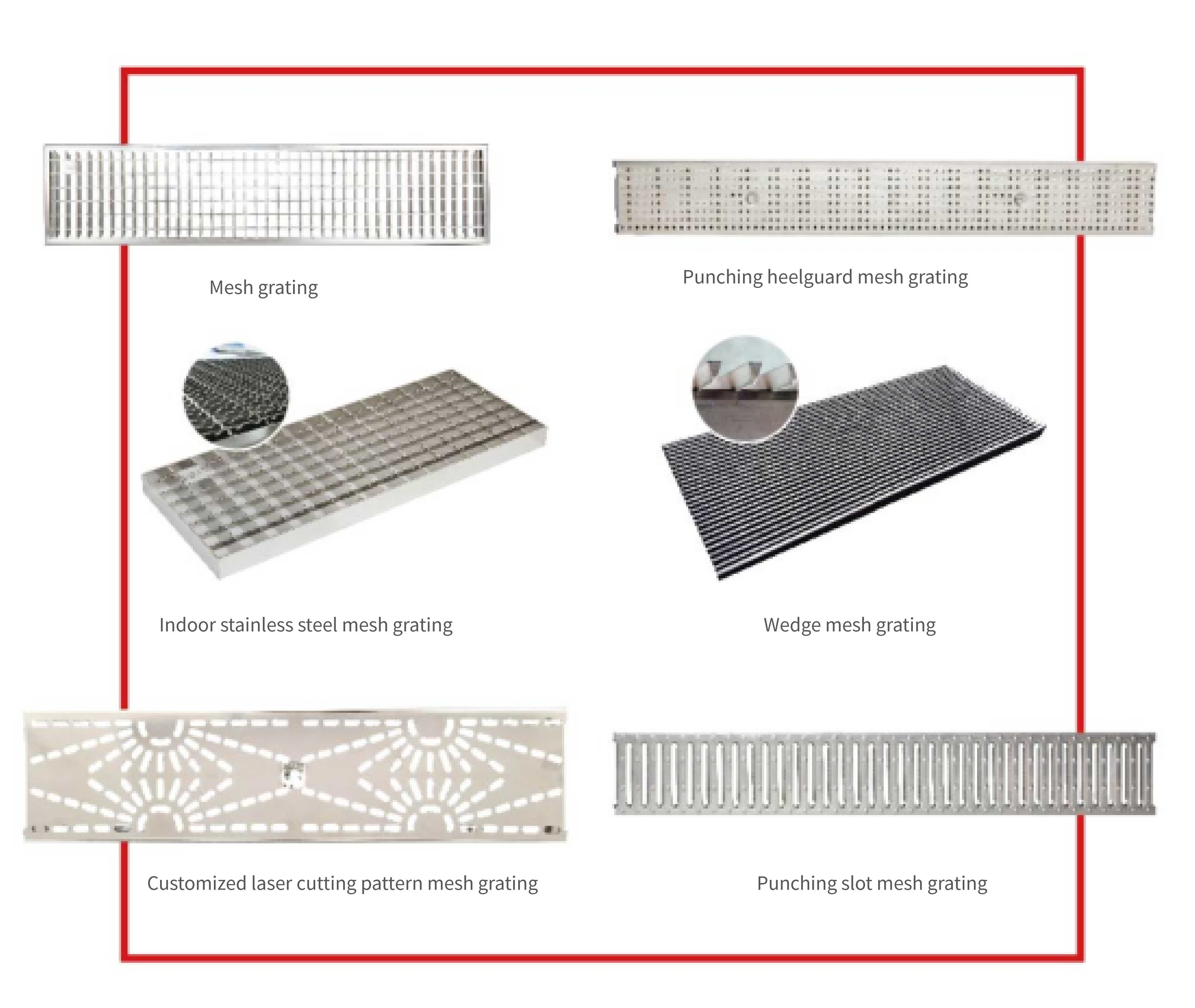

6.The pattern design of grating can be customized according to customer requirements
| Model | Inner width（mm） | Outer width（mm） | Height（mm） | Length（mm） | Discharge section area Height(cm²/m) | Bearing grade |
| Z/S 1000.0 | 100 | 130 | 150 | 1000 | 90 | A15-C250 |
| Z/S 1005.0 | 100 | 130 | 175 | 1000 | 120 | A15-C250 |
| Z/S 1010.0 | 100 | 130 | 200 | 1000 | 135 | A15-C250 |
| Z/S 1020.0 | 100 | 130 | 250 | 1000 | 185 | A15-C250 |
| Z/S 1030.0 | 100 | 130 | 300 | 1000 | 210 | A15-C250 |
| Z/S 1520.0 | 150 | 180 | 320 | 1000 | 380 | A15-C250 |
| Z/S 2000.0 | 200 | 254 | 280 | 1000 | 460 | A15-C250 |
| LZ/S 1000.0/60 | 100 | 130 | 60 | 1000 | 40 | A15-C250 |
| LZ/S 1000.0/80 | 100 | 130 | 80 | 1000 | 50 | A15-C250 |
| LZ/S 2000.0/100 | 200 | 233 | 100 | 1000 | 165 | A15-C250 |
| LZ/S 2000.0/130 | 200 | 233 | 130 | 1000 | 210 | A15-C250 |
| LZ/S 3000.0/130 | 300 | 333 | 130 | 1000 | 325 | A15-C250 |
