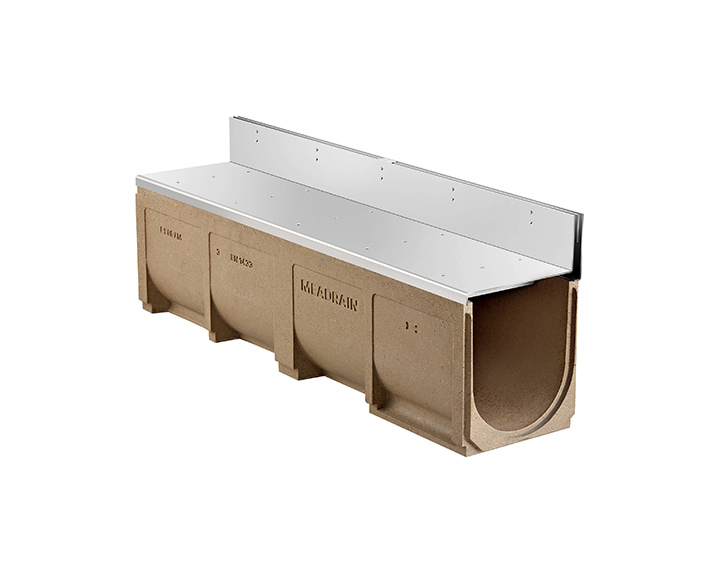

The MEA®Topslot drainage product has excellent drainage capacity and self-cleaning capacity. It can be used with different hard pavement materials, featuring simple and beautiful appearance; tested in the National third-party testing institutions, its bearing grade can reach Class D400.
① The standard width of slot cover is 15mm, and the width and height can also be customized to meet the landscape and application requirements
② It can be used for the connection of different pavement layers on the ground
③ With the design of special checking box, it can solve the problem of daily garbage accumulation and avoid odor inside the channel

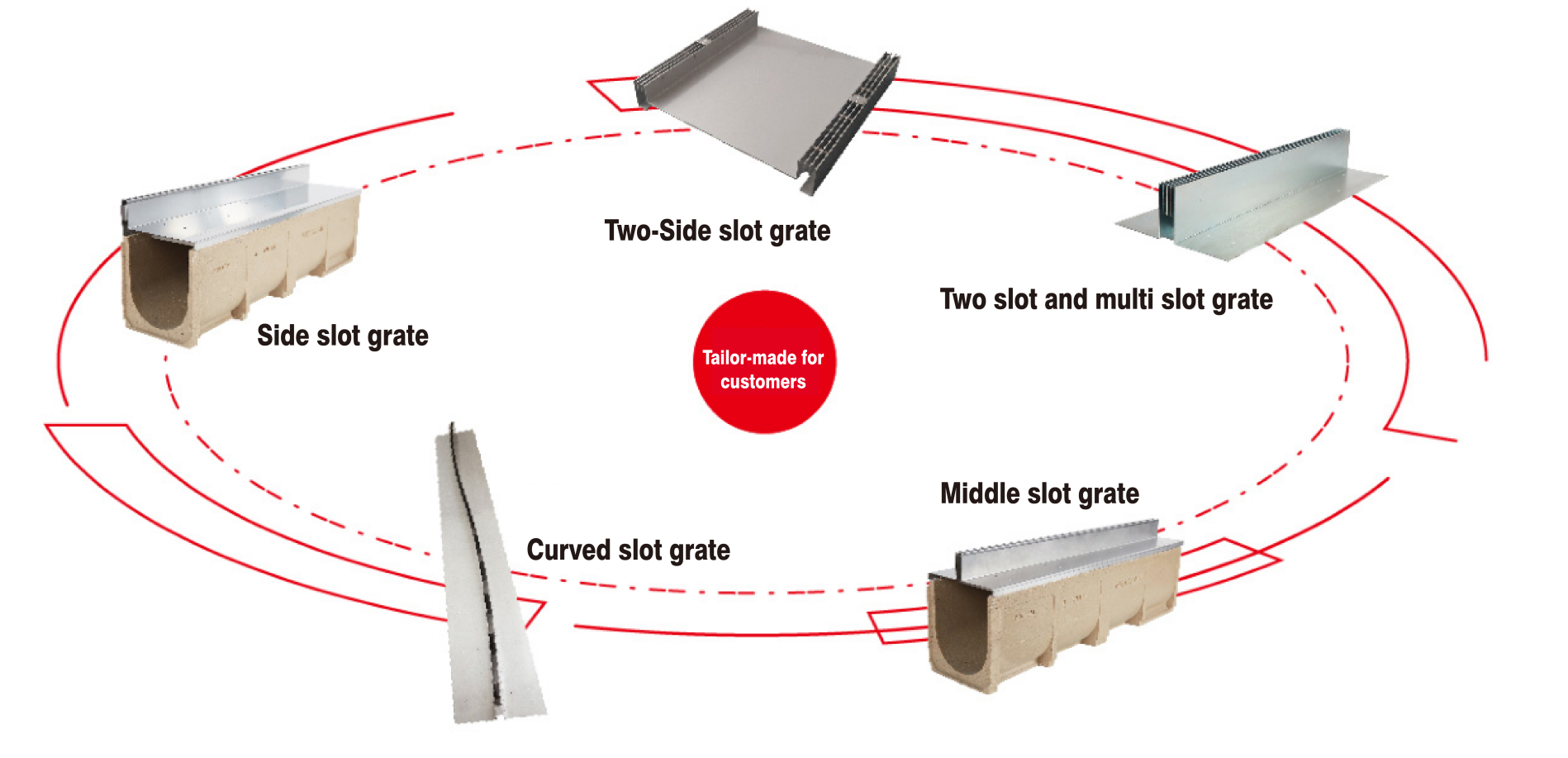

④ There are two basic cover forms available, i.e. middle slot type and side slot type
⑤The support between slots is square tube, which is more firm and does not deform under load
⑥ Various widths and heights available to suit different ground conditions
| Model | Inner width （mm） | Outer width（mm） | Height（mm） | Length（mm） | Discharge section area c㎡ | Loading Class |
| TS 1000.0 | 100 | 140 | 130 | 1000 | 90 | A15-D400 |
| TS 1010.0 | 100 | 140 | 180 | 1000 | 135 | A15-D400 |
| TS 1020.0 | 100 | 140 | 230 | 1000 | 185 | A15-D400 |
| TS 1030.0 | 100 | 140 | 280 | 1000 | 210 | A15-D400 |
| TS 1500.0 | 150 | 190 | 200 | 1000 | 225 | A15-D400 |
| TS 1520.0 | 150 | 190 | 300 | 1000 | 380 | A15-D400 |
| TS 2000.0 | 200 | 240 | 260 | 1000 | 460 | A15-D400 |
| TS 2010.0 | 200 | 240 | 310 | 1000 | 520 | A15-D400 |
| TS 2020.0 | 200 | 240 | 360 | 1000 | 620 | A15-D400 |
| TS 3000.0 | 300 | 370 | 370 | 1000 | 980 | A15-D400 |
| TS 3020.0 | 300 | 370 | 470 | 1000 | 1270 | A15-D400 |
