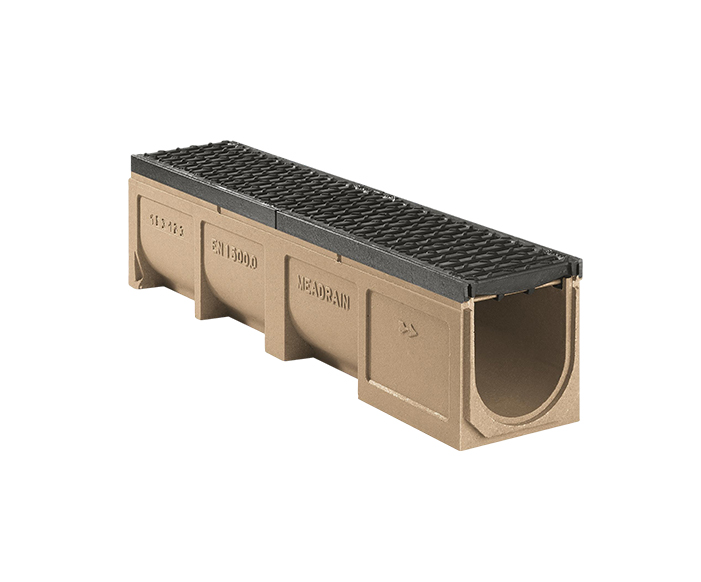

MEA®Drain Heavy Load

Consult Immediately

Contact Us 400-900-8996

Product Description

In the industrial area, highway or airport area, the smooth drainage of road surface is very important. Through special design, MEA®Drain Heavy Load can provide ideal drainage scheme for various harsh environment areas.

Bearing grade
Product Advantage

1.The drainage channel is made of polymer concrete with strong Loading Class capacity, and the highest Loading Class can reach F900
2.The polymer concrete channel is provided with ductile cast iron edge to provide better support and protection for the cover.
3.The Grating is made of ductile cast iron and designed according to different bearing capacity.
4.Two locking methods, profix and bolts
5.The connection mode between channels is socket type, with 5mm gluing groove for the secondary anti-seepage glue application in special areas
Product Application

Product Parameters

Model	Inner width（mm）	Outer width（mm）	Height（mm）	Length（mm）	Discharge sectio narea(cm²/m)	Bearing grade
EN 1000.0	100	140	150	1000	90	A15-F900
EN 1005.0	100	140	175	1000	125	A15-F900
EN 1010.0	100	140	200	1000	150	A15-F900
EN 1020.0	100	140	250	1000	200	A15-F900
EN 1030.0	100	140	300	1000	250	A15-F900
EN 1500.0	150	190	220	1000	225	A15-F900
EN 1520.0	150	190	320	1000	380	A15-F900
EN 2000.0	200	240	280	1000	420	A15-F900
EN 2010.0	200	240	330	1000	520	A15-F900
EN 2020.0	200	240	380	1000	620	A15-F900
EN 3000.0	300	370	390	1000	980	A15-F900
EN 3020.0	300	370	490	1000	1270	A15-F900
EN 3070.0	300	394	760	1000	1893	A15-F900
EN 4000.0	400	494	465	1000	1500	A15-F900

Project References

Shanghai Disney Land (CHN)

Shanghai Disneyland Park, the first one in mainland China and the sixth one in the world, is located in Chuansha New Town, Pudong New Area, Shanghai. It was officially opened on June 16, 2016. MEA China provided slot linear drainage system and coverlinear drainage system for PTC area, RDE area, PTH bridge, parking lot and main entrance area of the Park. MEA China also customized MEA fancy ductile cast iron coverfor Disney.

Hengqin Port is a port connecting the Macao Special Administrative Region of China and Hengqin New Area of Zhuhai City, Guangdong Province. It is located in the southwest of Zhuhai City and adjacent to Macao. It is the intersection of "one country, two systems" and a Class I port in China.
