MEA®TRAFFIC is a drainage product specially designed for asphalt and concrete pavement.

It is very suitable for high traffic flow places such as logistics park, container assembly area, urban tunnel, testing track, motorcycle track, expressway and airport, where higher requirements are raised for road surface water drainage.

Firstly, the drainage system must be able to bear the dynamic weight of heavy vehicles; secondly, the system must be able to ensure the safety of the road surface, and must ensure the rapid drainage of the road surface in the case of heavy rainfall; finally, it must be economical, whether in design, installation or maintenance.

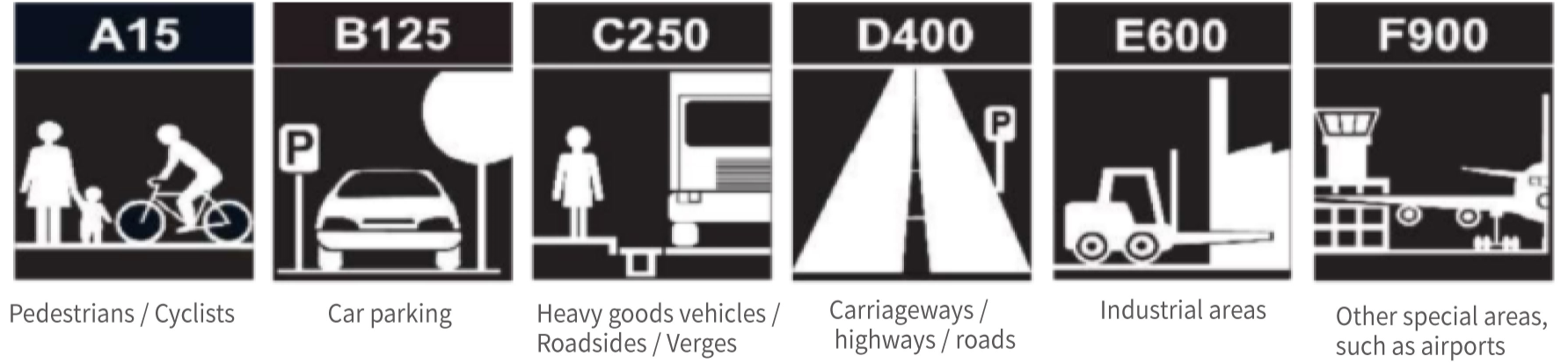

 Bearing grade

1.The Channel and Cover are made of polymer concrete to ensure their safety on the road

2.The cover and channel are integrated, and there is no cover displacement or springboard phenomenon when vehicles are running at high speed

3.The overall loading capacity can reach F900

4.The cover is 135mm thick, and is internally reinforced to effectively improve the lateral impact resistance of the drainage channel

5.The side wall of channel is provided with water collecting hole, which can effectively collect the interlayer water of asphalt pavement

6.The water collecting hole on the surface of the slab is of anti-skid design and is used as a cross-section channel in the tunnel, which can effectively protect the safety of vehicles passing through

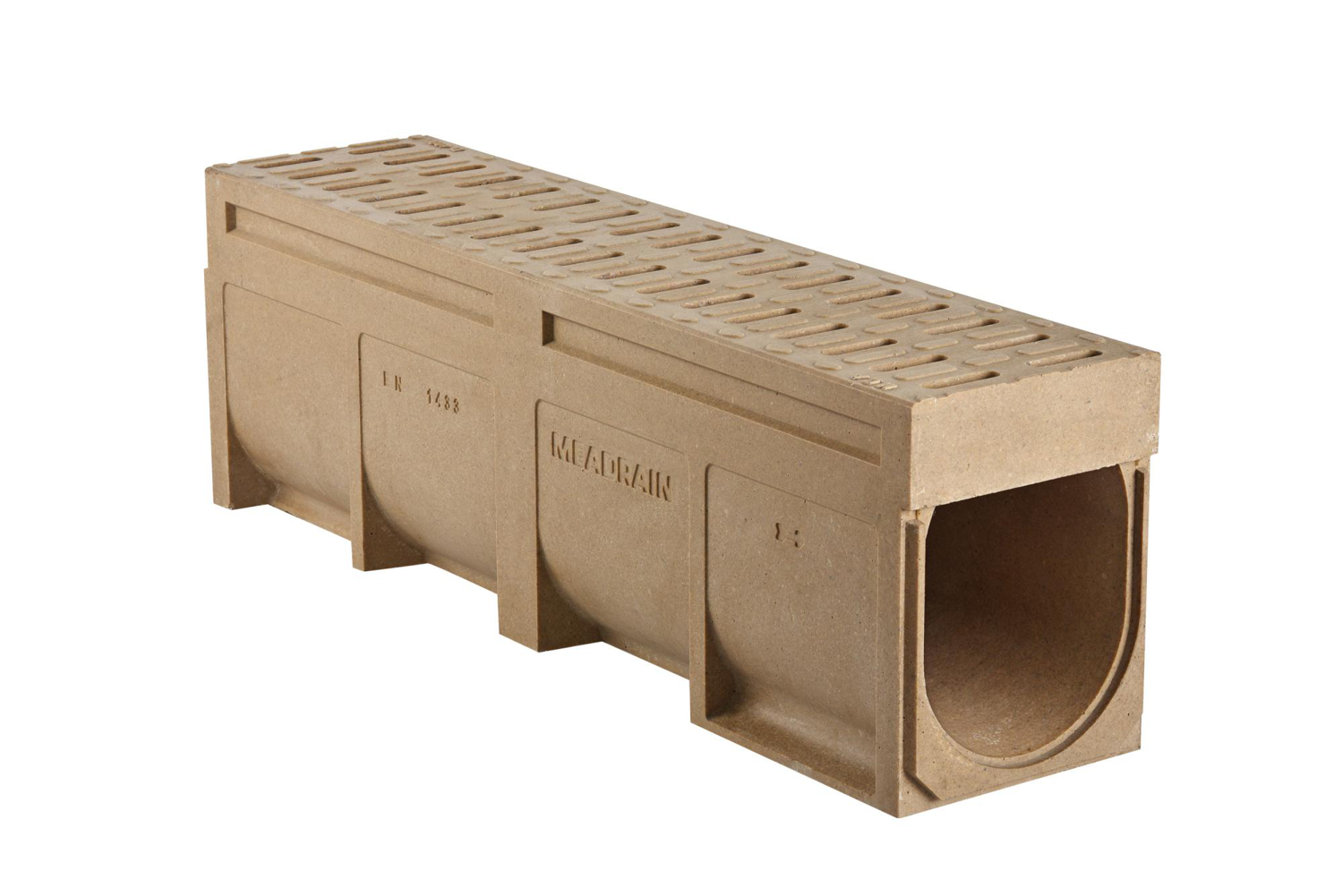

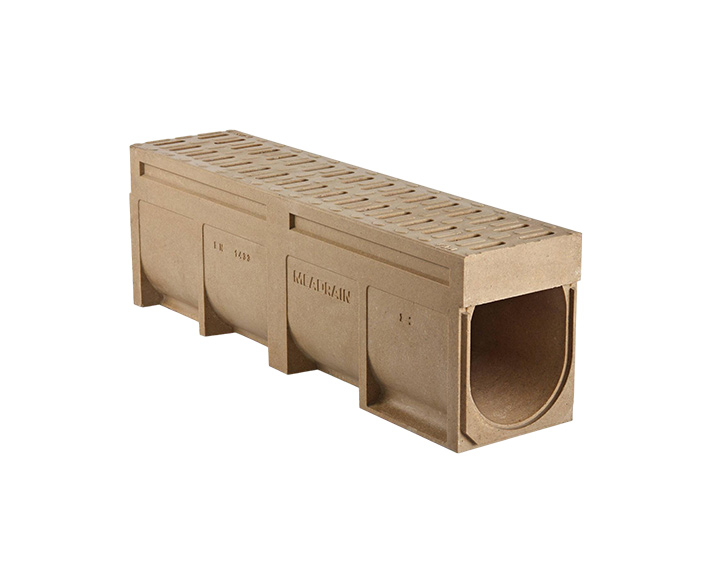

1.MEA®TRAFFIC D1000 / D2000

Specifically designed for pavement, the product can meet the high requirement for expressways for they have to bear vehicles with different loads. With the best dynamic load-carrying capacity, MEA®TRAFFIC D1000 / D2000 can provide reliable guarantee for driving safety. It has very strong compression and bending resistance performance, combined with the overall lock protection cover, so it can ensure its use stability.

2.MEA®TRAFFIC DM2000

DM2000 integrated product, made of polymer concrete with high compressive and flexural strength, is also a drainage product specially designed for asphalt and concrete pavement.The cover and channel body are integrally formed, so there is no cover slab displacement or springboard phenomenon. The system is anti-theft type.The bearing grade of the system reaches D400.

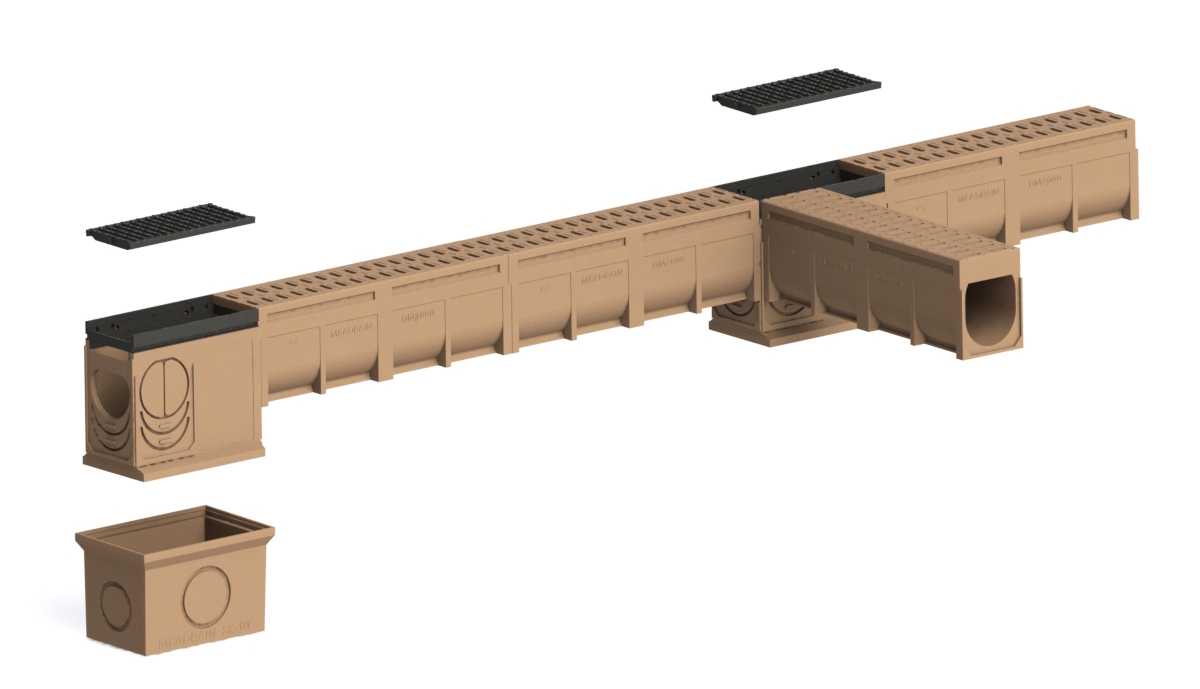

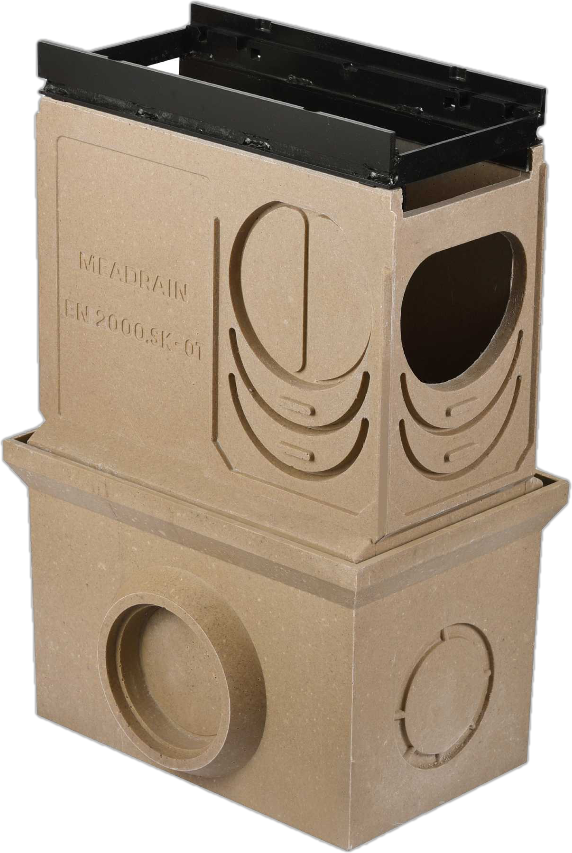

3.MEA®TRAFFIC is matched with the Silt Boxes system

 As a product with lock type protective cover, it can ensure stability and is not vulnerable to damage.

The special fine locking meshes can make the sidewalk more open, and can be easily passed even for those in high heels.

4.Safe squares and shopping areas

 The fine locking meshes make the system more suitable for children's play, because it has no moving parts and does not harm children. Other applications include: Sidewalks and other public or municipal authorities.

 Bearing grade：E600
