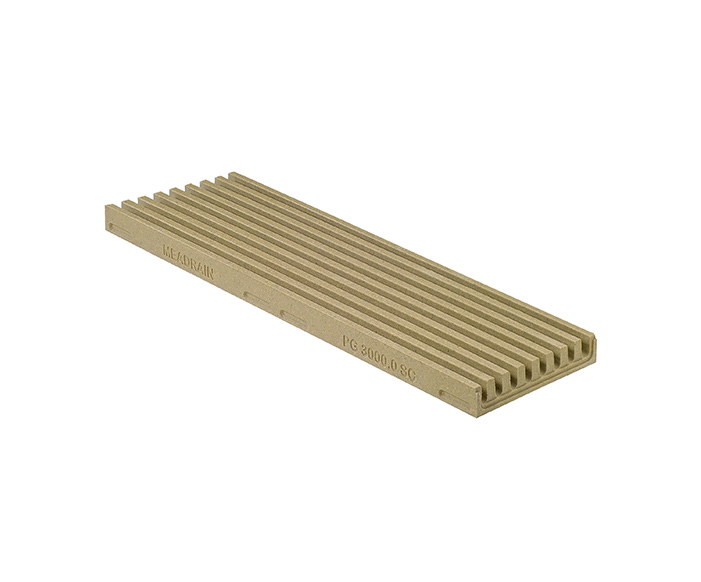

The MEA®Drain Parking is a very important aspect which is often ignored in the project design, such as multi-storey parking lot, underground parking lot and so on. MEA®Drain Parking series is a drainage system with intelligent design, which completely avoids the movable components and has the noiseless and soundless characteristics.
Bearing grade
① The drainage channel is 50mm high, which can be used in a limited story height
② Movable component and noise-free design
③ Comb-like patent design

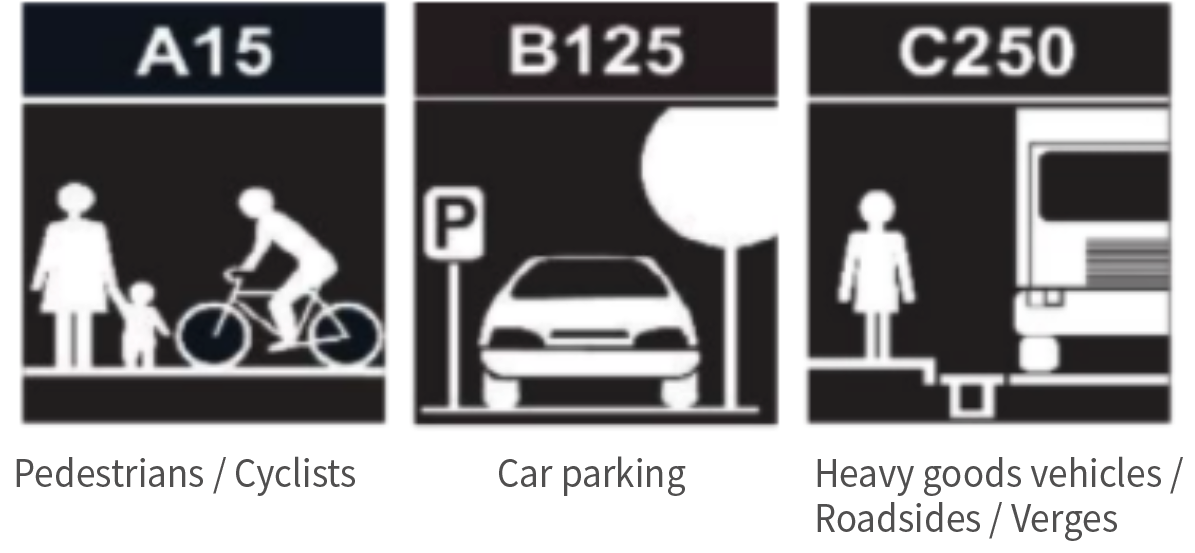

④ Disposable resin concrete molding, Loading Class C250
⑤ No need to install large lifting equipment and easy installation
⑥ Comb-like structure can be better used as an indicator for blind roads
⑦ It conforms to the standard width of wheelchairs and bicycle tires
Model | Outer width（mm） | Total height（mm） | Comb width（mm） | Lengt（mm） | Material |
| PG 1500.0 | 150 | 50 | 18 | 1000 | polymer concrete |
| PG 3000.0 | 300 | 50 | 18 | 1000 | polymer concrete |
